From Concept to Production: Injection Molding Part Design Strategies That Work

injection molding, , , , , , , , , , , , , , , , , , , , ,

Injection molding is one of the most widely used manufacturing processes for producing plastic parts. It offers high precision, scalability, and cost-effectiveness, making it a preferred method for industries ranging from consumer goods to automotive. However, designing parts for injection molding requires a deep understanding of the process, materials, and design principles. This guide provides expert insights into designing parts for injection molding, ensuring that your designs are manufacturable, efficient, and meet the required performance standards.

  • Table of Contents
  1. Introduction to Injection Molding
  2. Design Considerations for Injection Molding
  3. Material Selection for Injection Molding
  4. Design for Manufacturability (DFM)
  5. Tooling and Mold Design
  6. Surface Finishing and Textures
  7. Assembly and Post-Molding Operations
  8. Testing and Validation
  9. Sustainability in Injection Molding
  10. Cost Considerations and Optimization
  11. Case Studies and Examples
  12. Best Practices and Future Trends



  • Introduction to Injection Molding

Injection molding is a manufacturing process where molten plastic is injected into a mold cavity. Once the plastic cools and solidifies, the mold opens, and the part is ejected. This process is highly versatile and can produce parts with complex geometries, tight tolerances, and high volumes.



  • Key Components of Injection Molding
  1. Plastic Material: The raw material used, typically thermoplastic or thermosetting polymers.
  2. Mold: A metal cavity that shapes the molten plastic into the desired form.
  3. Injection Unit: Responsible for melting the plastic and injecting it into the mold.
  4. Ejection System: Mechanism that removes the part from the mold after cooling.



  • Advantages of Injection Molding

– High Volume Production: Suitable for producing large quantities of parts.

– Complex Geometries: Capable of creating intricate shapes and features.

– Low Labor Costs: Automated process reduces the need for manual intervention.

– Material Efficiency: Minimal waste compared to other manufacturing methods.



  • Common Applications

– Consumer goods (e.g., household items, electronics)

– Automotive components

– Medical devices

– Packaging



  • Design Considerations for Injection Molding

Designing parts for injection molding requires careful consideration of several factors to ensure manufacturability, functionality, and cost-effectiveness.



  • Part Geometry

– Wall Thickness: In injection molding, wall thickness plays a crucial role in ensuring part quality, strength, and manufacturability. Ideally, walls should be uniform to promote consistent cooling and prevent defects like warping, sink marks, or internal stresses. Recommended thickness varies by material—ABS (1.2–3.5 mm), Polypropylene (0.8–3.0 mm), and Polycarbonate (1.0–4.0 mm). Avoid abrupt changes in thickness; instead, use gradual transitions or tapers to maintain flow consistency. Overly thick sections can lead to long cooling times and defects, while very thin walls may result in incomplete filling. Always balance strength, material flow, and mold ability when deciding wall  thickness for optimal injection-molded part performance.



– Draft Angles: In injection molding, a draft angle is the slight taper applied to vertical surfaces of a part to facilitate easy ejection from the mold. Without adequate draft, parts can stick, causing damage or requiring excessive ejection force. A typical draft angle ranges from 1° to 2° per side, but more may be needed for textured or deep parts. Proper draft improves mold longevity and ensures smooth part release, reducing defects and production delays. All faces perpendicular to the mold opening direction should have draft applied. Designing with draft in mind is essential for moldability, efficiency, and consistent part quality.

– Radius and Fillets: In injection molding, radii and fillets are rounded transitions between surfaces that reduce stress concentrations, improve material flow, and enhance part strength. Sharp corners, especially internal ones, can cause weak points, warping, or incomplete filling. Adding fillets (internal curves) and radii (external curves) helps maintain uniform wall thickness and reduces wear on the mold. A good rule is to use an internal radius of at least 0.5× the wall thickness and match external radii accordingly. These smooth transitions also aid in ejection and overall part aesthetics. Proper use of fillets and radii is essential for durable, high-quality molded parts.

  1. Material Selection

– Thermoplastics: Commonly used due to their re-meltable nature (e.g., PP, ABS, PC).

– Thermosets: Used for high-temperature applications but are not reusable once set.

– Additives: Include fillers, colorants, or reinforcements based on the desired properties.



  1. Tolerances

– Dimensional Tolerance: Typically ±0.1mm to ±0.5mm, depending on the material and part size.

– Surface Finish: Specify surface roughness (e.g., Ra 1.6 to Ra 12.5) based on the application.



  1. Ejection and Mold Release

– Ejector Pins: Ejector pins are critical components in injection molding that push the finished part out of the mold once it has cooled and solidified. Located on the mold’s core side, they apply a controlled force to release the part without causing damage or deformation. Ejector pins are typically round and leave small, often visible marks on non-cosmetic surfaces. Proper pin placement is crucial to avoid warping or sticking, especially on large or thin-walled parts. Designers should provide flat, reinforced areas—called ejector pads—for pin contact. Effective ejection ensures consistent cycle times, part quality, and mold longevity in high-volume manufacturing.

–Mold Release: Design features to minimize the need for mold release agents, such as textured surfaces or draft angles.

  1. Ribs and Bosses

– Ribs: Ribs in injection molding are thin, protruding features used to reinforce plastic parts without adding excessive material or increasing wall thickness. They enhance structural rigidity, prevent bending, and support other features like bosses or mounting points. To avoid sink marks and warping, ribs should be designed with proper proportions: typically 50–70% of the adjacent wall thickness and no taller than three times that thickness. Draft angles of 0.5–1° and rounded bases help ensure smooth ejection and reduce stress concentrations. Well-designed ribs improve mechanical performance while maintaining moldability, ensuring strong, lightweight, and visually acceptable injection-molded components.

– Bosses: Bosses in injection molding are raised cylindrical features typically used for assembly purposes, such as accommodating screws, inserts, or aligning parts. They should be designed with wall thickness no more than 60% of the adjoining wall to avoid sink marks and warping. Adding fillets at the base and reinforcing them with ribs or gussets enhances strength. Proper draft angles (typically 0.5–1°) help with ejection. Well-designed bosses improve part functionality, structural support, and manufacturability.

  1. Holes and Threads

– Hole Diameter: In injection molding, hole diameter must be carefully designed to ensure moldability and part strength. Small holes can be difficult to mold accurately, while large holes may weaken the structure. A minimum diameter of 1 mm is recommended, depending on material and wall thickness. Holes should be placed with enough spacing from edges and other features to prevent stress concentration. For deep holes, core pins are used, and slight draft may be added to aid ejection and reduce wear.

– Threads: In injection molding, thread diameter must be designed to ensure accurate molding and part strength. External threads are easier to mold than internal ones and should include a draft angle of 1–2° for smooth ejection. For internal threads, collapsible cores or unscrewing mechanisms may be required, increasing mold complexity. Threads should be coarse rather than fine to ensure proper filling and durability. The minimum recommended thread diameter is typically 5 mm, with sufficient clearance to avoid weak walls or distortion.



  1. Snap Fits and Assembly Features

– Snap Fits: Design cantilever beams with adequate deflection (0.5mm to 2mm) and return angle (30° to 45°).

– Assembly Features: Incorporate alignment features (e.g., guide pins, keyways) for ease of assembly.

  1. Mold Flow and Fill Analysis

– Flow Length-to-Thinness Ratio: Optimize the flow path to ensure even filling and minimize material pressure.

– Weld Lines: Avoid placing critical features where weld lines may form, as they can weaken the part.

  1. Cooling and Shrinkage

– Cooling Time: Ensure sufficient cooling time to prevent warping and dimensional inaccuracies.

– Shrinkage: Account for material shrinkage (typically 0.1% to 2%) in your design.

  1. Aesthetics and Branding



– Logos and Markings: In injection molding, logo engraving should be designed with clear, moldable dimensions to ensure readability and ease of manufacturing. The minimum line width (diameter) for engraved features is typically 0.25 mm, depending on the material and mold precision. Engravings should not be too deep—usually 0.1 to 0.3 mm—to avoid sink marks and ensure smooth ejection. Placement on flat, non-critical surfaces is ideal. Adequate draft angles (at least 1°) help prevent damage during demolding and improve logo clarity.

  • Material Selection for Injection Molding

The choice of material is critical for the performance, cost, and manufacturability of your part.

  • Common Materials
  1. Polypropylene (PP): Lightweight, flexible, and chemical-resistant.
  2. Acrylonitrile Butadiene Styrene (ABS): Impact-resistant and suitable for high-temperature applications.
  3. Polycarbonate (PC): Transparent, impact-resistant, and suitable for optical applications.
  4. Polyethylene (PE): Low-cost, flexible, and chemical-resistant.
  5. Polyester (PET): High-strength, rigid, and suitable for packaging.
  • Material Properties to Consider

– Mechanical Properties: Tensile strength, impact resistance, and flexural modulus.

– Thermal Properties: Heat deflection temperature (HDT) and thermal conductivity.

– Chemical Resistance: Compatibility with chemicals and cleaning agents.

– Optical Properties: Transparency, gloss, and UV resistance.

  • Additives and Fillers

– Reinforcements: Glass fibers for increased strength and stiffness.

– Fillers: Minerals like calcium carbonate to reduce material costs.

– Colorants: Pigments or masterbatches for custom colors.

– UV Stabilizers: To prevent degradation from UV exposure.

  • Sustainability Considerations

– Recyclability: Choose materials that are recyclable or biodegradable.

– Bioplastics: Consider PLA (Polylactic Acid) or PHA (Polyhydroxyalkanoates) for eco-friendly applications.

– Material Efficiency: Optimize part weight and thickness to minimize material usage.

  • Design for Manufacturability (DFM)

Design for Manufacturability (DFM) is a critical aspect of injection molding that ensures your part can be produced efficiently and cost-effectively.

  • Key DFM Principles
  1. Simplify the Design: Avoid unnecessary complexity that could increase tooling costs or lead to manufacturing defects.
  2. Minimize Undercuts: Undercuts require side actions in the mold, which increase tooling complexity and cost.
  3. Avoid Thin Walls: Ensure wall thickness is consistent and within recommended limits to prevent warping and sink marks.
  4. Use Standard Features: Standardize features like bosses, ribs, and snaps to reduce design variability.
  • Moldability Analysis

– Flow Analysis: Use simulation tools to analyze how molten plastic flows into the mold cavity.

– Pressure Drop: Ensure that the pressure drop is within acceptable limits to avoid material degradation.

– Cooling Analysis: Optimize cooling channels to ensure uniform cooling and minimize warping.

  • Design for Assembly (DFA)

– Snap Fits: Use snap fits to eliminate the need for fasteners.

– Alignment Features: Incorporate guide pins, keyways, or chamfers to facilitate easy assembly.

– Modular Design: Design parts that can be easily assembled into a complete product.

  • Cost Reduction Strategies

– Reduce Material Usage: Optimize part weight and thickness to minimize material costs.

– Simplify Tooling: Avoid complex mold features that increase tooling costs.

– Increase Production Volume: Take advantage of economies of scale by producing larger batches.

  • Tooling and Mold Design

The mold is a critical component of the injection molding process, and its design directly impacts the quality, cost, and lead time of your part.

  • Key Components of a Mold
  1. Cavity: The part of the mold that shapes the plastic into the desired form.
  2. Core: The part of the mold that creates holes or recesses in the part.
  3. Runner System: Channels that direct molten plastic from the injection unit to the mold cavity.
  4. Gates: Points where molten plastic enters the mold cavity.
  5. Ejector Pins: Mechanisms that push the part out of the mold after cooling.



  • Mold Types
  1. Single-Cavity Mold: Produces one part per cycle. Ideal for low-volume production.
  2. Multi-Cavity Mold: Produces multiple parts per cycle. Ideal for high-volume production.
  3. Family Mold: Produces multiple parts of similar size or shape. Reduces tooling costs.
  4. Hot Runner Mold: Uses insulated runners to keep the plastic molten between shots. Reduces material waste.



  • Mold Materials
  1. Steel: Most common mold material due to its durability and cost-effectiveness.
  2. Aluminum: Used for prototype molds or low-volume production due to its faster machining time.
  3. Beryllium Copper: Used for high-wear areas due to its high thermal conductivity.



  • Mold Surface Finish

– Polishing: Improves part quality and reduces mold wear.

– Texturing: Creates surface textures for aesthetic or functional purposes.

– Coating: Applies wear-resistant or corrosion-resistant coatings to critical areas.



  • Mold Maintenance

– Cleaning: Regularly clean the mold to prevent contamination and material buildup.

– Lubrication: Lubricate moving parts to reduce wear and tear.

– Inspection: Inspect the mold for damage or wear and perform repairs as needed.



  • Surface Finishing and Textures

Surface finishing and textures play a crucial role in the aesthetics and functionality of injection-molded parts.



  • Common Surface Finishes
  1. Polished Finish: Achieved by polishing the mold cavity to a high gloss. Ideal for optical applications.
  2. Textured Finish: Creates a specific surface texture for grip, aesthetics, or functionality.
  3. Matte Finish: Provides a dull, non-reflective surface. Ideal for hiding mold marks or imperfections.
  4. Etched Finish: Creates a fine, detailed texture using chemical etching.



  • Texture Patterns
  1. Fine Texture: Provides a smooth, low-gloss surface.
  2. Medium Texture: Offers a balanced combination of aesthetics and functionality.
  3. Coarse Texture: Ideal for applications requiring high grip or durability.



  • Functional Textures

– Grip Textures: Used on handles, grips, and other areas requiring traction.

– Ventilation Textures: Create airflow or drainage in applications like filters or vents.

– Aesthetic Textures: Enhance the visual appeal of the part.



  • Application Methods
  1. Mold Texturing: Textures are incorporated directly into the mold cavity.
  2. Post-Molding Texturing: Textures are applied after molding using processes like laser etching or pad printing.
  3. Insert Molding: Textures are molded into inserts that are then assembled into the final part.



  • Assembly and Post-Molding Operations

Many injection-molded parts require additional assembly or post-molding operations to meet their functional requirements.



  • Assembly Methods
  1. Snap Fits: Use cantilever beams or other snap-fit features to eliminate the need for fasteners.
  2. Ultrasonic Welding: Join parts using high-frequency vibrations to create a strong bond.
  3. Adhesive Bonding: Use adhesives to join parts, especially when different materials are involved.
  4. Screw or Rivet Assembly: Use mechanical fasteners for applications requiring high strength or adjustability.



  • Post-Molding Operations
  1. Printing: Apply labels, logos, or other graphics using screen printing, pad printing, or laser marking.
  2. Painting: Apply paint for aesthetic or functional purposes, such as color matching or UV resistance.
  3. Plating: Apply metal coatings for conductivity, corrosion resistance, or aesthetics.
  4. Machining: Perform secondary machining operations like drilling, tapping, or grinding for precision features.



  • Automation in Assembly

– Robotic Assembly: Use robots to automate repetitive tasks like screw driving or welding.

– Vision Systems: Use vision systems to inspect and guide assembly operations.

– Conveyor Systems: Use conveyor systems to move parts through the assembly line efficiently.



  • Design for Assembly (DFA)

– Simplify the Design: Minimize the number of parts and fasteners to reduce assembly time and cost.

– Modular Design: Design parts that can be easily assembled into a complete product.

– Alignment Features: Incorporate guide pins, keyways, or chamfers to facilitate easy alignment during assembly.



  • Testing and Validation

Before moving to mass production, it’s essential to test and validate your design to ensure it meets the required performance, safety, and quality standards.



  • Types of Testing
  1. Mechanical Testing: Evaluate the part’s strength, stiffness, and impact resistance.
  2. Thermal Testing: Test the part’s performance under extreme temperatures.
  3. Chemical Resistance Testing: Assess the part’s resistance to chemicals and cleaning agents.
  4. Optical Testing: Evaluate the part’s clarity, gloss, and UV resistance.
  5. Functional Testing: Test the part’s functionality in its intended application.



– Rapid Prototyping: Use 3D printing or CNC machining to create prototypes for testing.

– Design Iteratio: Refine the design based on test results and feedback.

– Design Freeze: Finalize the design once all issues have been resolved.



  • Quality Control

– Inspection: Regularly inspect parts for defects or variations.

– Dimensional Measurement: Measure critical dimensions to ensure compliance with specifications.

– Statistical Process Control (SPC): Monitor the production process to maintain consistent quality.



As environmental concerns grow, designing sustainable injection-molded parts is becoming increasingly important.



  • Key Sustainability Considerations
  1. Material Selection: Choose materials that are recyclable, biodegradable, or made from renewable resources.
  2. Material Efficiency: Optimize part weight and thickness to minimize material usage.
  3. Energy Efficiency: Design parts that can be produced using less energy and water.
  4. End-of-Life Design: Design parts for disassembly, recycling, or biodegradation.



  • Bioplastics

– PLA (Polylactic Acid): A biodegradable thermoplastic made from renewable resources like corn starch or sugarcane.

– PHA (Polyhydroxyalkanoates): A biodegradable thermoplastic produced from bacterial fermentation.

– PBAT (Polybutylene Adipate-co-Butylene Terephthalate): A biodegradable thermoplastic used for flexible applications.



  • Recyclable Materials

– Recycled Plastics: Use post-consumer recycled (PCR) or post-industrial recycled (PIR) materials.

– Material Identification: Use material identification codes to facilitate sorting and recycling.



  • Design for Recyclability

– Simplify the Design: Avoid complex geometries or multiple materials that complicate recycling.

– Material Separation: Design parts that can be easily disassembled and separated into different materials.

– Avoid Contaminants: Minimize the use of additives, coatings, or adhesives that can contaminate recycled materials.



  • Cost Considerations and Optimization

Understanding the cost drivers in injection molding is essential for optimizing your design and reducing production expenses.



  • Key Cost Drivers
  1. Tooling Costs: The cost of designing and building the mold is a significant upfront expense.
  2. Material Costs: The cost of the plastic material used to produce the part.
  3. Production Volume: Higher production volumes reduce the per-unit cost due to economies of scale.
  4. Complexity: Complex geometries, undercuts, and multiple cavities increase tooling and production costs.





  • Cost Reduction Strategies
  1. Simplify the Design: Avoid unnecessary complexity that increases tooling and production costs.
  2. Use Standard Features: Standardize features like bosses, ribs, and snaps to reduce design variability.
  3. Optimize Material Usage: Minimize material waste by optimizing part weight and thickness.
  4. Use Recycled Materials: Incorporate recycled plastics to reduce material costs.
  5. Increase Production Volume: Take advantage of economies of scale by producing larger batches.



  • Total Cost of Ownership (TCO)

– Material Costs: The cost of the plastic material over the product’s lifecycle.

– Tooling Costs: The upfront cost of designing and building the mold.

– Production Costs: The cost of producing the part, including labor, energy, and overhead.

– Post-Molding Costs: The cost of additional operations like assembly, painting, or packaging.

– Warranty and Repair Costs: The cost of repairing or replacing defective parts.



  • Case Studies and Examples

Real-world examples provide valuable insights into the challenges and opportunities of designing parts for injection molding.



  • Case Study 1: Consumer Electronics Housing

– Challenge: Design a lightweight, impact-resistant housing for a portable electronic device.

– Solution: Use ABS for its high impact resistance and process ability. Incorporate ribs and gussets for added stiffness without increasing material usage.

– Outcome: A durable, cost-effective housing that meets the required performance and aesthetic standards.





  • Case Study 2: Medical Device Component

– Challenge: Design a clear, autoclavable component for a medical device.

– Solution: Use PC for its transparency and high heat resistance. Incorporate textured surfaces for grip and alignment features for easy assembly.

– Outcome: A component that meets strict medical standards for clarity, sterility, and functionality.





  • Case Study 3: Automotive Part

– Challenge: Design a lightweight, heat-resistant part for an automotive application.

– Solution: Use a glass-filled PA6 for its high strength, stiffness, and heat resistance. Optimize the design for minimal material usage and easy assembly.

– Outcome: A cost-effective, high-performance part that meets the demanding requirements of the automotive industry.







  • Best Practices and Future Trends

Adhering to best practices and staying informed about future trends ensures that your designs remain competitive and innovative.



  • Best Practices
  1. Collaborate with Mold Makers: Work closely with mold makers to ensure your design is manufacturable.
  2. Use Simulation Tools: Utilize mold flow and structural analysis tools to optimize your design.
  3. Consider Sustainability: Design parts with sustainability in mind, using recyclable or biodegradable materials.
  4. Iterate and Refine: Continuously refine your design based on testing and feedback.



  • Future Trends
  1. Advanced Materials: Development of new materials with enhanced properties, such as self-healing plastics.
  2. Digital Manufacturing: Increased use of digital tools for design, simulation, and production.
  3. Circular Economy: Focus on designing parts for recyclability, reusability, and biodegradability.
  4. Additive Manufacturing: Integration of additive manufacturing techniques with injection molding for hybrid production methods.

By following the insights and guidelines outlined in this guide, you can design injection-molded parts that are functional, cost-effective, and sustainable. Whether you’re a seasoned designer or just starting out, understanding the principles of injection molding will empower you to create innovative solutions that meet the demands of modern manufacturing.

Designing Thermoformed Plastic Packaging Trays for Precision Machined Parts

Custom Thermoforming, , , , ,

Thermoformed plastic packaging trays are a practical, customizable, and cost-effective solution for protecting and organizing precision machined parts. Industries such as automotive, aerospace, electronics, and medical devices rely on these trays to keep delicate components safe during transit and storage. With thermoforming, companies can design tailored trays that ensure precision parts are protected, organized, and easily handled, all while benefiting from cost-efficiency compared to other packaging methods.

In this blog, you will learn:

  1. Examples of Precision Machined Parts That Benefit from Thermoformed Trays – How industries like automotive, aerospace, and medical devices use thermoformed trays.

  2. Types of Thermoforming Processes – The differences between vacuum forming, pressure forming, and twin-sheet thermoforming, and when to use each.

  3. Key Design Considerations for Thermoformed Trays – Factors like part geometry, material selection, and stackability that influence tray design.

  4. Material Options for Thermoformed Packaging Trays – Common plastics used in thermoforming and how they enhance the tray’s durability and protection.

  5. Cost Benefits of Thermoformed Trays Compared to Other Packaging Solutions – A breakdown of why thermoformed trays are a more economical choice over injection molding, foam, or metal packaging.

  6. Industry References and Supporting Research – Reliable sources and research articles to deepen your understanding of thermoforming and its applications.

Precision Machined Parts That Benefit from Thermoformed Trays

Precision machined parts are critical in industries where accuracy, tolerance, and quality are paramount. These parts often have intricate geometries and delicate finishes, making them vulnerable to damage if not packaged properly. Thermoformed trays ensure that each part is securely placed, minimizing movement and protecting against environmental factors. Here are some examples of machined parts commonly packaged using thermoformed trays:

  1. Automotive Industry: Components like engine parts, gears, and precision-cut fasteners require custom-fit trays that prevent scratches and misalignment during transportation. High-value parts, such as transmission gears or custom brake components, need individualized pockets to ensure each part stays secure.

  2. Aerospace Industry: In aerospace, thermoformed trays are used to package precision components such as turbine blades, aerospace fasteners, and connectors. Due to the high value and tight tolerances of these parts, thermoformed trays are ideal for ensuring damage-free transport. Thermoforming solutions with anti-static materials may also be needed to protect sensitive electronic parts.

  3. Medical Devices: Thermoformed trays are also widely used for medical devices such as surgical instruments, implants, and diagnostic tools. These trays not only protect the physical components but can also be designed to maintain a sterile environment, meeting the regulatory requirements of the medical industry.

  4. Electronics Industry: For electronics manufacturers, thermoformed trays can prevent damage to sensitive components like printed circuit boards (PCBs), connectors, and electronic housings. Anti-static trays are often used to safeguard against electrostatic discharge (ESD).

Types of Thermoforming for Packaging Trays

Thermoforming is a process in which plastic sheets are heated and molded into desired shapes using various methods. The two most common thermoforming methods for packaging trays are vacuum forming and pressure forming.

Vacuum Forming:

  • Process: In vacuum forming, a heated plastic sheet is stretched over a mold, and a vacuum is applied to suck the sheet tightly against the mold. This method is ideal for creating simpler trays with shallow designs.

  • Best Used For: Vacuum forming is best for packaging trays that don’t require extremely detailed designs but need to securely hold components such as automotive fasteners or medical tools.

  • Cost Benefits: Vacuum forming is less expensive than pressure forming, making it ideal for businesses that need to produce large quantities of trays without complex detailing. The lower tooling costs also make it a preferred option for small-to-medium volume production runs.

Pressure Forming:

  • Process: Pressure forming uses additional pressure alongside the vacuum to press the heated plastic sheet against the mold, creating more detailed and precise trays. This process allows for sharper features and higher levels of customization.

  • Best Used For: Pressure forming is used when detailed features are needed in the tray design. Industries like aerospace and electronics, where precision parts must be perfectly cradled, often utilize pressure-formed trays.

  • Cost Benefits: Although slightly more expensive than vacuum forming, pressure forming allows for better precision and higher-quality finishes, making it suitable for higher-end parts.

Twin-Sheet Thermoforming:

  • Process: Twin-sheet thermoforming heats two plastic sheets simultaneously and molds them together, creating hollow, durable structures. It’s commonly used for large, heavy-duty trays.

  • Best Used For: Large or heavy components that require additional protection, such as automotive body parts or large aerospace components, benefit from the rigidity and durability of twin-sheet thermoforming.

Material Considerations

The material chosen for thermoformed trays can greatly impact their functionality and durability. Some common materials include:

  • Polyethylene (PE): Known for impact resistance and durability, PE is ideal for heavy-duty automotive or industrial components.

  • Polyvinyl Chloride (PVC): Offers excellent clarity and chemical resistance, making it suitable for medical and electronics trays.

  • Acrylonitrile Butadiene Styrene (ABS): Used for trays that require higher strength and rigidity, ABS is often utilized for aerospace components.

  • Anti-Static Plastics: Critical for electronic components, anti-static trays protect sensitive parts from electrostatic discharge.

Selecting the right material depends on the industry and specific application, but all materials contribute to the tray’s ability to protect high-value parts during transit and storage.

Cost Benefits of Thermoformed Trays Compared to Other Packaging Methods

Thermoformed trays offer several cost advantages over other types of packaging, such as injection-molded trays, foam inserts, or metal containers:

  • Lower Tooling Costs: Thermoforming requires significantly lower tooling costs than injection molding. This makes it ideal for businesses that need custom trays but don’t want to invest in expensive molds for small-to-medium production runs.

  • Material Efficiency: Thermoformed trays are lightweight yet strong, reducing both material usage and shipping costs. This can be particularly beneficial in industries like aerospace, where weight is a crucial consideration.

  • Customization: The flexibility of the thermoforming process allows for high levels of customization at a fraction of the cost of other methods. This means businesses can create highly specific trays that perfectly fit their components without the need for expensive multi-part assemblies.

  • Reusable and Recyclable: Many thermoformed trays are designed for multiple uses, making them a cost-effective option for businesses that need to store or transport parts multiple times. Additionally, thermoformed plastics are often recyclable, contributing to environmental sustainability efforts.

Further Reading and References

  1. Society of Plastics Engineers (SPE) – SPE publishes research on thermoforming processes and packaging innovations, providing insights into material selection and process optimization.
    Source: 4spe.org

  2. Thermoforming Quarterly – Published by the Thermoforming Division of SPE, this journal provides research on new developments in thermoforming technology, including applications for packaging trays.
    Source: Thermoforming Quarterly

  3. Plastics Industry Association (PLASTICS) – Reports on packaging trends and plastic thermoforming processes, offering valuable insights into industry best practices.
    Source: plasticsindustry.org

  4. Packaging Digest – Articles like “The Advantages of Thermoforming Plastic Packaging” discuss the benefits of thermoformed packaging in terms of cost, flexibility, and sustainability, especially for industries like automotive and electronics.
    Source: packagingdigest.com

  5. Plastics Technology – Offers in-depth industry articles on thermoforming processes, materials, and packaging applications, making it a great resource for exploring the cost and design benefits of thermoformed packaging trays.
    Source: plasticstoday.com

Conclusion

Thermoformed plastic trays provide a highly versatile and cost-effective solution for packaging precision machined parts. With lower tooling costs, customizable designs, and the ability to protect sensitive components, thermoformed trays are ideal for industries such as automotive, aerospace, medical, and electronics.

At Om Raj Tech, we partner with STM Plastics to deliver custom-designed thermoformed trays that meet your specific needs. With years of experience and expertise in creating packaging trays for a variety of industries, we ensure that your precision parts are well-protected and cost-effectively packaged.

Contact us today to learn how STM Plastics, represented by Om Raj Tech, can help you design and produce high-quality thermoformed trays for your precision machined parts

Designing a Skylight: From Concept to Production

Custom Thermoforming, , , ,

Designing and thermoforming manufacturera skylight, whether for residential, commercial, or industrial use, involves multiple stages and requires the coordination of various specialized suppliers and manufacturers. From initial design to prototyping and full-scale production, every phase demands specific capabilities to ensure the final product meets performance, aesthetic, and regulatory requirements.

In this article, we will walk through the stages of skylight design and highlight the suppliers or capabilities necessary for each phase. We’ll also delve into how thermoforming manufacturer plays a key role in creating durable and precisely shaped skylight components.

1. Concept and Design Phase

The design phase is where the vision of the skylight takes shape. It involves defining the skylight’s purpose, size, shape, material preferences, and specific features such as energy efficiency, UV protection, and light diffusion.

Capabilities Needed:

  • Architectural Designers: These professionals provide initial sketches and detailed blueprints, specifying the dimensions, aesthetics, and technical requirements for the skylight.

  • Engineering Consultants: Depending on the application (residential, industrial, or commercial), structural engineers may be required to ensure the skylight can withstand environmental forces like wind, snow, or seismic activity. Engineering teams also provide insights into material strength, load-bearing capabilities, and thermal performance.

  • Material Specialists: At this stage, material options such as polycarbonate, acrylic, and glass are considered. Specialists help recommend materials based on light transmission, impact resistance, UV resistance, and fire rating requirements.

Key Suppliers:

  • Material Suppliers: Provide sheets of polycarbonate, acrylic, or other materials that will eventually be thermoformed into the skylight dome.

  • Design and Drafting Firms: Create detailed CAD models for visual representation and technical analysis of the skylight structure.

2. Prototyping Phase

Once the design is finalized, the prototyping phase begins. Prototypes help to test the skylight’s fit, form, and function before committing to full-scale production. This is a critical phase for identifying any design flaws, validating material choices, and evaluating the ease of installation.

Capabilities Needed:

  • Rapid Prototyping Services: Suppliers that specialize in creating physical models based on the CAD designs. 3D printing, CNC machining, and thermoforming are common methods used to create skylight prototypes. The prototypes might include scaled-down models or full-size versions depending on the design complexity and testing requirements.

  • Testing Laboratories: Prototypes must be tested for structural integrity, light transmission, thermal insulation, and impact resistance. For industrial applications, the skylight may also need to be tested for compliance with safety standards, such as wind uplift tests or fire safety evaluations.

Key Suppliers:

  • Prototype Manufacturers: These companies produce the initial skylight parts using various techniques, such as 3D printing for small-scale models or CNC machining for more durable prototypes.

  • Material Testing Facilities: Labs that perform material performance evaluations to ensure the selected materials meet the required strength and safety standards.

3. Tooling and Pre-Production

Once the prototype has been approved, the next step is to create the tooling and set up production processes. This phase involves designing the molds and other tools that will be used to manufacture the skylight in large quantities.

Capabilities Needed:

  • Tooling Suppliers: Tooling suppliers specialize in creating the molds and dies that will be used for manufacturing skylight components. For thermoformed skylights, aluminum molds are commonly used for their durability and heat conductivity.

  • Mold Design Engineers: These professionals create molds that precisely match the skylight design, accounting for factors such as material shrinkage, thickness variation, and dimensional tolerances.

Key Suppliers:

  • Mold and Tooling Manufacturers: These companies produce the custom molds needed for thermoforming the skylight components.

4. Production Phase

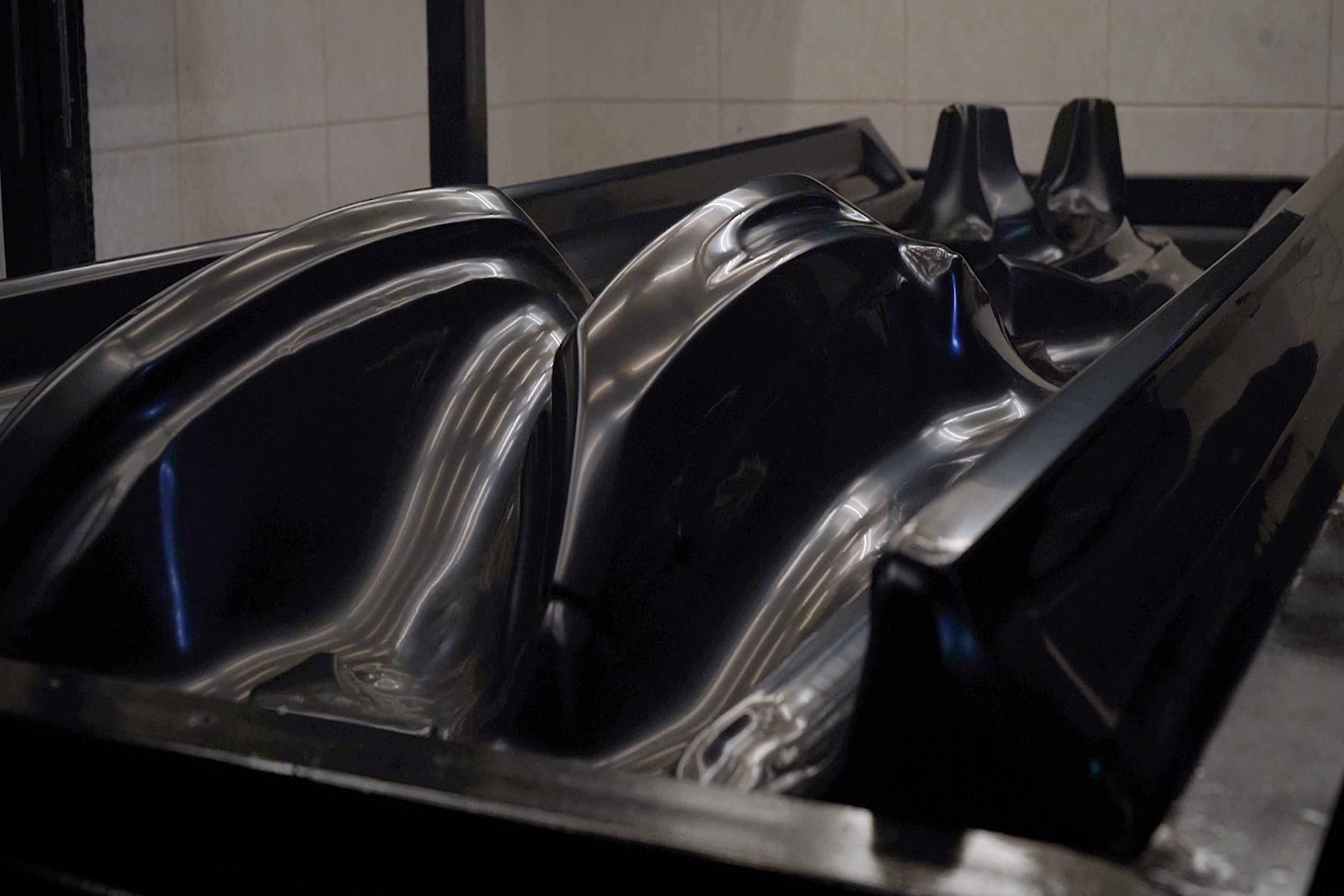

The production phase is where the skylight design is brought to life in large quantities. Depending on the skylight design and material, different manufacturing processes might be used. For skylights that are designed with polycarbonate or acrylic domes, thermoforming manufacturer is the most common method of production.

Capabilities Needed:

  • Thermoforming Suppliers: Thermoforming manufacturer involves heating plastic sheets (polycarbonate, acrylic, or similar materials) and shaping them using molds. This process is ideal for producing large, complex shapes like skylight domes, offering both durability and high optical clarity. thermoforming manufacturer is also cost-effective for both small and large production runs, making it suitable for custom-designed skylights.

  • Glass or Metal Suppliers: If the skylight requires additional framing or a metal grid structure, separate suppliers might be needed to provide these components.

Types of Thermoforming:

  • Vacuum Forming: This process involves heating a plastic sheet and using a vacuum to pull the material into the mold, forming the skylight’s shape. It is typically used for simpler designs and smaller production runs.

  • Pressure Forming: For more complex designs or applications that require more detail, pressure forming uses additional air pressure to push the material into the mold. This method produces sharper features and finer details, ideal for high-end skylight designs.

  • Twin-Sheet Thermoforming: In this process, two heated plastic sheets are formed and bonded together to create a hollow structure. Twin-sheet thermoforming manufacturer is ideal for skylights that require additional strength or insulation.

Thermoforming Capabilities from Om Raj Tech

Om Raj Tech, through its representation as a manufacturer’s representative for STM Plastics, offers expertise in thermoforming the skylight components, particularly the dome. Whether your design calls for simple vacuum-formed components or more complex pressure-formed parts, we can provide the thermoformed solution to meet your exact specifications. With experience in producing high-quality, custom skylight parts, we ensure your product is durable, optically clear, and perfectly tailored to your design needs.

Contact Om Raj Tech to learn how our thermoforming manufacturer services can help bring your skylight design to life, ensuring precision and cost-effectiveness in production.

5. Assembly and Installation

After the skylight components have been manufactured, the final step is assembly and installation. This phase includes combining all the manufactured parts—such as the thermoformed dome, metal framing, and any glass or plastic panes—into the final skylight structure.

Capabilities Needed:

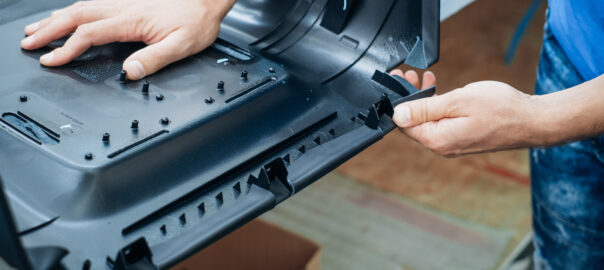

  • Assembly Services: For large-scale production, assembly lines are set up to combine the skylight’s parts. This could involve joining the thermoformed dome to the frame, adding insulation, or attaching glass panes.

  • Installation Teams: In commercial and industrial skylight projects, the installation process is complex and may require specialized contractors. The installation must meet building codes and ensure airtight seals to prevent leaks and drafts.

Key Suppliers:

  • Assembly Facilities: Assembly suppliers specialize in piecing together all skylight components in a factory environment, ensuring precision and efficiency.

  • Installation Contractors: For final on-site installation, contractors experienced in skylight fitting will ensure that the product is securely and safely installed.

Further Reading and References

For more detailed information on the design, prototyping, and production of skylights, as well as insights into thermoforming manufacturerprocesses and material selection, explore the following resources:

  1. Skylight Design and Installation Guidelines
    This guide from the American Architectural Manufacturers Association (AAMA) provides standards and best practices for designing and installing skylights, focusing on energy efficiency, material selection, and weather resistance.

    • AAMA Skylight Design Guidelines

  2. Thermoforming Design and Process Overview
    The Thermoforming Division of the Society of Plastics Engineers offers in-depth resources and technical papers on thermoforming processes, materials, and applications in architectural products like skylights.

    • Thermoforming Division – SPE

  3. Energy-Efficient Skylight Design for Buildings
    This article from the U.S. Department of Energy details considerations for designing energy-efficient skylights, including material choice, glazing, and placement.

    • U.S. Department of Energy Skylight Guide

  4. Skylight Performance Standards and Testing
    National Fenestration Rating Council (NFRC) provides insight into skylight testing for performance ratings, focusing on energy efficiency, heat transfer, and UV protection.

    • NFRC Skylight Ratings

  5. Materials Used in Thermoformed Skylights
    Plastics Technology offers technical articles discussing the best materials for thermoforming skylights, such as polycarbonate and acrylic, which offer impact resistance, UV stability, and optical clarity.

    • Plastics Technology: Materials for Thermoforming

  6. Architectural Skylight Solutions
    A comprehensive guide that explores different types of architectural skylights, detailing design options, structural requirements, and advanced materials used in modern skylight systems.

    • ArchDaily: Skylight Design

These resources will provide further guidance on designing efficient and durable skylights, as well as insights into thermoforming manufacturer and material selection that can enhance the performance and aesthetics of your skylight projects.

Conclusion

Designing and producing a skylight requires expertise across multiple phases, from initial concept design to prototyping, production, and installation. Each step involves specialized suppliers and capabilities to ensure that the final product meets aesthetic, functional, and safety requirements.

At Om Raj Tech, we collaborate with our partner STM Plastics to provide high-quality thermoformed components for skylights. Our expertise ensures that your skylight design is brought to life with precision and durability, ensuring a smooth transition from concept to production.

Contact us today to learn more about how we can assist with the thermoformed components of your skylight design and make your vision a reality.

When Is Thermoforming Plastic Used?

Custom Thermoforming, Fiberglass, injection molding, , , ,

Thermoforming is a highly versatile and efficient manufacturing process used to create a variety of plastic parts by heating a plastic sheet until it’s pliable and then molding it into a desired shape. This process can be tailored to produce both small and large parts with varying levels of detail. Thermoforming is widely used across industries such as automotive, aerospace, medical, and packaging, particularly for large parts and low-to-mid volume production thermoforming . However, there are specific instances where thermoforming shines, as well as cases where it may not be the ideal choice.

1. When Thermoforming Is Best Suited

a. Large Parts with Simple Geometries:
Thermoforming is ideal for large, simple parts that don’t require intricate detailing. Items such as vehicle body panels, trays, plastic pallets, and signage are often produced using . It allows for the creation of large parts at a lower cost compared to processes like injection molding, where molds for larger parts are more expensive.

b. Heavy-Gauge Thermoforming for Large, Durable Parts:
In heavy/thick-gauge thermoforming, plastic sheets thicker than 1/16 inch (1.5 mm) are used to create robust, durable parts. This process is commonly used for larger applications such as automotive body panels, appliance housings, or interior panels for recreational vehicles (RVs). Heavy-gauge thermoforming allows for the creation of structurally strong parts that can withstand higher levels of impact and wear.

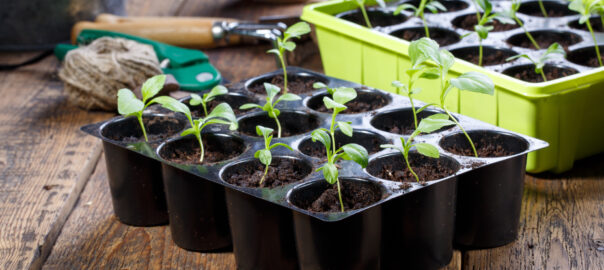

c. Thin-Gauge Thermoforming for Lightweight, Disposable Parts:
In contrast, light/thin-gauge thermoforming uses plastic sheets thinner than 1/16 inch (1.5 mm) to produce lightweight parts, typically for disposable or single-use applications. This process is widely used in the packaging industry to create items such as blister packs, clamshell packaging, and trays for food or medical devices. Thin-gauge thermoforming is cost-effective for packaging and other industries where weight reduction and material savings are key concerns.

d. Low-to-Mid Volume Production:
Thermoforming is particularly cost-effective for low-to-mid volume production, with tooling costs being much lower than injection molding. This makes it an ideal choice for businesses that need anywhere from a few hundred to several thousand units. Additionally, for products that require customization or frequent design changes, thermoforming tooling can be quickly and affordably modified.

e. Prototyping and Customization:
Due to its flexibility and lower tooling costs, is perfect for prototyping and rapid design iterations. If you need to test different versions of a product before committing to large-scale production, offers a fast and cost-effective solution. Whether you’re prototyping an automotive part or testing packaging for a medical device, thermoforming allows for easy modifications to the design.

f. Cost-Effective for Packaging Solutions:
Thermoforming is widely used in the packaging industry, especially for creating rigid, transparent containers that allow consumers to see the product inside. Blister packs, clamshell packaging, and trays for electronics, food, and medical devices are commonly produced using. It offers a balance between cost-efficiency and protection, making it ideal for packaging fragile or high-value items.

2. When Thermoforming May Not Be the Best Option

While thermoforming is a versatile and efficient process, it has some limitations where other manufacturing methods might be more appropriate.

a. Highly Complex Geometries and Precision Needs:
Thermoforming has limitations when it comes to creating parts with highly intricate designs or extreme precision. Parts with undercuts, fine details, or tight tolerances may not be feasible. In such cases, injection molding is a better alternative, as it can handle more complex geometries with higher precision.

b. Limited Material Options and Durability:
While thermoforming can work with a variety of thermoplastics, it may not offer the level of material strength or heat resistance required for certain applications. For parts exposed to extreme temperatures or requiring high mechanical strength, fiberglass FRP or metal fabrication (using materials such as aluminum or steel) may be better suited.

c. Structural Integrity and Thickness Limitations:
Though heavy-gauge thermoforming produces durable parts, it may not be suitable for applications requiring extremely high structural integrity or thickness. For parts that need greater strength or load-bearing capacity, alternative methods like fiberglass RTM or metal fabrication might offer better performance. For example, parts like boat hulls or heavy-duty industrial components benefit more from these alternative processes.

d. Low Precision or Surface Finish Requirements:
For parts that require high surface quality or tight tolerances, injection molding or Resin Transfer Molding (RTM) may be better options. Thermoformed parts often lack the surface precision required for applications like high-end consumer electronics or aerospace components, where exact surface finishes are critical.

Conclusion

Thermoforming is a highly effective manufacturing process when large, simple parts or lightweight packaging solutions are required. Heavy-gauge thermoforming is ideal for durable, large components in industries like automotive, while thin-gauge thermoforming excels in packaging and disposable products. However, for complex designs, high precision, or parts requiring more strength and durability, alternative methods like injection molding, fiberglass FRP, or metal fabrication may be more suitable.

Om Raj Tech, through its representation of STM Plastics, offers custom thermoforming solutions for both heavy and thin-gauge applications. Whether you’re looking to produce large, durable parts or lightweight packaging, we can tailor our services to meet your specific project needs.

Contact us to explore how we can bring your designs to life with cost-effective and high-quality solutions.

Top 10 Thermoforming Suppliers in Kansas

custom thermoformed plastics, Custom Thermoforming, , , , , ,

Kansas is home to several high-quality thermoforming suppliers specializing in custom solutions for a wide range of industries, including automotive, agriculture, consumer products, and medical equipment. Whether you’re looking for precision prototyping or large-scale production, finding the right supplier can ensure that your products meet the highest standards. Here’s a list of the top 10 thermoforming suppliers in Kansas, offering excellent services, design expertise, and reliable production capabilities.

Top 10 Thermoforming Suppliers in Kansas:

  1. API Kansas

  2. Industrial Plastic Products

  3. Midwest Plastics

  4. Plastic Packaging Technologies

  5. Scully Enterprises

  6. STM Plastics (represented by Om Raj Tech)

  7. Thermoform Plastics

  8. Triad Manufacturing

  9. United Plastic Fabricating

  10. Western Industries Plastic Products

1. API Kansas

Overview:
API Kansas is a reliable thermoforming supplier that focuses on delivering custom parts for the agriculture and construction industries. They are known for their durable, heavy-gauge thermoformed parts, making them a trusted supplier for equipment manufacturers.

Key Benefits:

  • Expertise in heavy-gauge thermoforming for durable applications.

  • Strong focus on agriculture and construction industries.

  • Excellent customer service and support for custom projects.

Pros:

  • Reliable and durable products for tough environments.

  • Custom solutions tailored to industry-specific requirements.

Cons:

  • Focuses mainly on heavy-gauge thermoforming, limiting thin-gauge projects.

2. Industrial Plastic Products

Overview:
Industrial Plastic Products provides thermoforming services to the automotive, industrial, and consumer goods industries. They specialize in custom design and manufacturing of both small and large parts using a variety of thermoplastic materials.

Key Benefits:

  • Custom design and production for a wide range of industries.

  • Capable of handling both thin-gauge and heavy-gauge thermoforming projects.

  • Strong focus on quality and consistency.

Pros:

  • Versatile production capabilities for a wide range of part sizes.

  • Consistent quality control across all projects.

Cons:

  • Limited capacity for extremely large-scale production runs.

3. Midwest Plastics

Overview:
Midwest Plastics offers custom thermoforming services with a strong emphasis on precision and efficiency. They serve a variety of industries, providing small-batch prototyping and medium-volume production capabilities.

Key Benefits:

  • Focus on precision manufacturing for custom parts.

  • Strong capabilities in prototyping and medium-volume production.

  • Custom design services to meet specific industry needs.

Pros:

  • Expertise in precision thermoforming.

  • Flexible production options for both small and medium runs.

Cons:

  • Limited large-scale production capabilities.

4. Plastic Packaging Technologies

Overview:
Plastic Packaging Technologies is a Kansas-based leader in thermoforming solutions for the packaging industry. They focus on creating innovative, custom packaging solutions for food, medical, and consumer goods industries. Their expertise in material selection and design optimization makes them a go-to supplier for thermoformed packaging.

Key Benefits:

  • Specialized in thermoformed packaging solutions.

  • Expertise in sustainable and eco-friendly materials.

  • Advanced manufacturing processes for custom packaging designs.

Pros:

  • Strong focus on innovative and sustainable packaging designs.

  • Flexible production capabilities for both small and large orders.

Cons:

  • Primarily focused on the packaging industry, limiting versatility.

5. Scully Enterprises

Overview:
Scully Enterprises provides custom thermoforming solutions with a strong focus on agriculture and automotive parts. They specialize in producing durable, heavy-gauge thermoformed products that are designed to withstand tough environmental conditions.

Key Benefits:

  • Expertise in heavy-gauge thermoforming for durable products.

  • Focused on agricultural and automotive industries.

  • Highly durable products designed for harsh environments.

Pros:

  • Excellent customer service and tailored solutions for specific industry needs.

  • Strong experience in producing durable, long-lasting components.

Cons:

  • Limited capabilities in thin-gauge thermoforming for lighter applications.

6. STM Plastics (Represented by Om Raj Tech)

Overview:
STM Plastics, based in Augusta, Kansas, specializes in custom thermoforming services for both thin-gauge and heavy-gauge projects. They serve a wide range of industries including agriculture, medical, and automotive. STM Plastics offers low-volume production and prototyping services, as well as full-scale manufacturing, making them a flexible partner for any project.

Key Benefits:

  • Expertise in both thin-gauge and heavy-gauge thermoforming.

  • Custom design services tailored to meet industry-specific needs.

  • Prototyping and low-volume production capabilities for custom solutions.

Pros:

  • Personalized design and engineering support for each project.

  • Competitive lead times for both prototyping and full production.

  • High attention to quality and customer satisfaction.

Cons:

  • Limited large-scale production capacity compared to larger firms.

7. Thermoform Plastics

Overview:
Thermoform Plastics offers specialized thermoforming services for a wide range of industries, including medical and consumer goods. They provide both small-batch prototyping and full-scale production, making them an ideal partner for companies looking for flexible production options.

Key Benefits:

  • Focus on both small and large volume orders.

  • Custom solutions for a wide range of industries.

  • Advanced production technology to ensure high-quality output.

Pros:

  • Offers both short-run prototyping and high-volume production.

  • Strong capabilities in custom design and engineering.

Cons:

  • Primarily focused on small-to-medium scale projects.

8. Triad Manufacturing

Overview:
Triad Manufacturing is a versatile thermoforming supplier in Kansas that serves a variety of industries, including automotive, industrial equipment, and retail. They are known for their high-quality design and manufacturing of custom thermoformed components.

Key Benefits:

  • Wide range of materials available for thermoforming.

  • Custom solutions for automotive and industrial applications.

  • State-of-the-art equipment for precision manufacturing.

Pros:

  • Strong capabilities in both prototyping and large-scale production.

  • Flexible design and engineering services for complex projects.

Cons:

  • Longer lead times for more intricate designs and projects.

9. United Plastic Fabricating

Overview:
United Plastic Fabricating is a key player in the Kansas thermoforming industry, offering custom solutions for a variety of industries including construction, medical, and transportation. Their capabilities in both thin and heavy-gauge thermoforming make them a versatile supplier.

Key Benefits:

  • Expertise in both thin-gauge and heavy-gauge thermoforming.

  • Custom solutions for a variety of industries.

  • Strong focus on quality control and customer satisfaction.

Pros:

  • Versatile production capabilities for both small and large parts.

  • Extensive experience in multiple industries.

Cons:

  • Longer lead times for highly customized projects.

10. Western Industries Plastic Products

Overview:
Western Industries Plastic Products is a trusted supplier in Kansas for large-scale thermoforming projects. They specialize in producing oversized and complex parts, with a strong focus on quality and durability. They serve industries such as agriculture, automotive, and heavy equipment.

Key Benefits:

  • Expertise in producing large and complex thermoformed parts.

  • Strong emphasis on quality and precision.

  • Capabilities in heavy-gauge thermoforming.

Pros:

  • Extensive experience with large-scale and complex projects.

  • Excellent quality control and durability of products.

Cons:

  • Higher costs for large, complex projects.

Conclusion

When choosing a thermoforming supplier in Kansas, consider factors such as production capacity, material expertise, and industry focus. STM Plastics, represented by Om Raj Tech, stands out for its flexible, custom thermoforming solutions for a variety of industries, including agriculture, automotive, and medical. Whether you need low-volume production or full-scale manufacturing, these suppliers have the expertise to meet your thermoforming needs.

For more information on how Om Raj Tech and STM Plastics can support your thermoforming projects, contact us today!

Designing Thermoformed Plastic Safety Covers for Machines: Compliance with OSHA Standards for Moving Parts

custom thermoformed plastics, Custom Thermoforming, Thermoformed Plastic, Thermoforming, Thermoforming Manufacturer, , , , , , , , , ,

In industrial and manufacturing settings, machines with moving components such as motors, bearings, shafts, belts, and pulleys pose significant safety risks if left exposed. Safety covers designed with thermoformed plastic can effectively protect workers from these hazards while adhering to OSHA standards, particularly 29 CFR Part 1910, which specifies requirements for machine guarding.

Key Considerations for Machine Safety Covers Using Thermoformed Plastic

For an effective design, each type of moving part requires special attention to both material selection and structural design. Here’s how OSHA standards guide the process for designing safe, durable thermoformed plastic covers:

1. Material Selection for Strength and Impact Resistance

OSHA’s 1910.212 on machine guarding emphasizes that guards must prevent worker access to moving parts. Thermoformed plastic is an excellent material choice because it’s lightweight, customizable, and impact-resistant, which is crucial for protecting workers from sudden breaks or debris.

  • Recommended Plastics: Polycarbonate is ideal for high-impact situations near motors or belts, as it offers a superior balance of durability and transparency. Acrylic and ABS may also be suitable for less rigorous applications.

  • Impact Testing: Ensuring the plastic meets ASTM D256 (Izod Impact Strength) standards is essential, as this helps confirm that the cover can withstand impacts without breaking or shattering. This testing assures compliance with OSHA’s requirements for preventing access to hazardous parts.

2. Covering Rotating Shafts and Exposed Bearings

Rotating shafts and bearings can quickly snag clothing or entrap limbs. OSHA guidelines require that guards prevent accidental contact, especially with rotating parts. Thermoformed plastic covers offer versatile design solutions for these hazards.

  • Full Enclosures for Shafts: Where feasible, full enclosures should surround rotating shafts, designed with sufficient clearance to prevent entanglement while allowing for safe observation.

  • Ventilation for Bearings: Bearings generate frictional heat, so the plastic cover should be vented where possible to prevent overheating. Strategically placed slits or perforations provide airflow while maintaining a strong barrier.

3. Safeguarding Belts and Pulleys with Shatterproof Covers

Belts and pulleys pose a unique challenge due to their continuous motion and potential for material wear. OSHA’s 1910.219 standard on mechanical power-transmission apparatus requires guards on exposed belts and pulleys.

  • Transparent Guarding: Clear, shatter-resistant materials allow operators to monitor belts without removing the cover. Polycarbonate is a preferred choice due to its high impact resistance, essential for preventing injuries from snapped belts or displaced pulleys.

  • Reinforced Corners and Edges: To enhance durability in high-stress areas, consider thicker edges or reinforced corners. This design approach helps prevent premature wear, especially around belt-driven machinery that experiences frequent vibrations.

4. Guarding Motors and Electrical Components

Motors are another critical component requiring secure guarding. Safety covers must not only prevent accidental contact but also accommodate airflow to avoid overheating. 1910.303 on electrical systems emphasizes that guards should allow for necessary ventilation around motors and electrical components.

  • Perforated Thermoformed Plastic Covers: Perforations or ventilation slots allow airflow while maintaining full coverage. This is especially important for electric motors, which rely on air circulation for cooling.

  • Modular Design for Motor Access: In maintenance-heavy settings, modular or quick-release covers allow easier access to motors for inspection, repair, or replacement without compromising safety.

5. Flexible Design for Accessibility and Ergonomics

The thermoformed plastic design should balance safety with ease of access, especially for parts that require frequent maintenance. OSHA’s 1910.147 standard on lockout/tagout (LOTO) highlights the need for easy access to machinery components while ensuring accidental startups are prevented.

  • Quick-Release Latches and Hinges: Using latches or hinged designs allows workers to access machine components easily while ensuring secure coverage during operation. For example, a quick-release panel on a cover for a motor allows fast inspection without detaching the entire guard.

  • Snap-On Covers for Bearings and Shafts: For moving parts like bearings, snap-on covers can be designed to fit snugly yet allow quick removal for lubrication or replacement.

6. Environmental Resistance and Durability for Machine Enclosures

Industrial environments can expose plastic covers to harsh elements, including oils, chemicals, and UV light. According to 1910.94 and 1910.1000, machine guards must withstand exposure to potential contaminants to maintain integrity over time.

  • Chemical-Resistant Coatings: For machinery exposed to lubricants, oils, or cleaning chemicals, the plastic should be treated with a protective coating. Polycarbonate and ABS with anti-corrosion treatments can provide the necessary durability.

  • UV-Stabilized Materials for Outdoor Machinery: Machines operating outdoors or near windows may require UV-resistant plastic, ensuring guards do not become brittle or discolored due to prolonged sun exposure.

7. Safety Labeling and Signage for Hazard Awareness

Clear labeling of hazards is crucial for effective machine safety. OSHA’s 1910.145 standard on safety signs and tags emphasizes the importance of visible warning labels on guards.

  • Durable Labels on Flat Surfaces: Labels indicating hazard zones, maintenance instructions, or lockout points should be placed on flat, prominent areas of the cover. Laminated or engraved labels resist wear from cleaning and chemicals.

  • Color Coding for Visual Cues: Color-coded sections on the guard can help operators quickly identify different components. For instance, red for danger zones and green for maintenance panels can improve operational safety.

Additional Design Tips for Thermoformed Safety Covers on Machinery

While OSHA compliance forms the foundation of safety cover design, practical design considerations can improve the functionality and ease of use of thermoformed plastic guards:

  • Prototyping for Fit and Functionality: Prototyping allows engineers to assess the fit of the cover on actual machinery and receive feedback from operators. Adjustments can be made to improve the ergonomic design, visibility, and accessibility.

  • Modular Assembly for Customization: Modular cover designs allow for mix-and-match sections that can be tailored to fit different types of machinery, such as various motor or pulley configurations, without redesigning the entire guard.

  • Anti-Fogging and Scratch-Resistant Coatings: For guards covering moving parts that need close monitoring, anti-fog and scratch-resistant coatings maintain visibility and durability over time.

Conclusion: Effective Machine Guarding with Thermoformed Plastic

Thermoformed plastic safety covers, when designed according to OSHA guidelines, offer a powerful combination of protection, durability, and cost-effectiveness for machine guarding. By prioritizing material strength, environmental resistance, and functional design, engineers can create thermoformed guards that meet OSHA’s stringent requirements while enhancing workplace safety.

For industries reliant on machinery with moving parts, including motors, bearings, shafts, and belts, the right safety cover can reduce the risk of accidents and increase operational efficiency. Integrating thermoformed plastic safety standards from the beginning of the design process not only ensures compliance but also supports a proactive approach to workplace safety and productivity.

OSHA-Compliant Safety Products Using Vacuum Forming: Durable Solutions with Custom Thermoforming

Custom Thermoforming, Thermoforming, Thermoforming Manufacturer, , , , , , , , , , , , , , , , , , ,

In many industrial and commercial settings, safety products are essential for protecting workers and ensuring OSHA compliance. Vacuum forming, a type of custom thermoforming , offers a practical solution for creating durable, custom-designed safety components that meet OSHA’s standards for machine guarding, fall protection, and safe handling. This process allows for the production of large, lightweight parts with detailed designs, ideal for safety applications.

This article explores OSHA-compliant safety products that can be created through vacuum forming, covering the benefits, applications, and design considerations. With the expertise of STM Plastics, a company with robust capabilities in both heavy and thin-gauge thermoforming, businesses can achieve tailored, compliant solutions that improve workplace safety.

Why OSHA Compliance Matters for Thermoformed Safety Products

OSHA’s guidelines are designed to prevent workplace injuries and ensure that safety products are durable, visible, and accessible. Several key OSHA standards apply to thermoplastic safety components:

  • 1910.29: Requirements for fall protection systems, including guardrails and barriers.

  • 1910.212: Machine guarding requirements to protect workers from moving parts.

  • 1910.145: Specifications for safety signs and labels, including durability and clarity for accident prevention.

By adhering to these standards, vacuum-formed products help facilities protect employees from risks associated with machinery, fall hazards, and other workplace dangers.

Applications of OSHA-Compliant Safety Products Using Vacuum Forming

1. Machine Guards and Protective Covers

OSHA’s 1910.212 standard requires that machinery be properly guarded to protect employees from moving parts. Vacuum-formed machine guards and covers are ideal for creating large, lightweight, and durable barriers that meet these requirements.

  • Safety Guards for Belts and Chains: Thermoformed plastic covers protect workers from belts, chains, and gears. These covers are commonly made from high-impact materials like ABS or polycarbonate for added durability.

  • Custom Enclosures for Hazardous Equipment: STM Plastics specializes in custom-designed enclosures that prevent accidental contact with dangerous machinery parts. Their custom thermoforming expertise allows for precise moldings that fit snugly around equipment, ensuring compliance with OSHA machine guarding standards.

2. Fall Protection and Barrier Components

In facilities with elevated work areas or rooftops, OSHA’s 1910.29 standard mandates the use of guardrails and fall protection barriers. Vacuum-formed components, such as guardrail bases and safety barriers, offer a lightweight, corrosion-resistant alternative to metal.

  • Guardrail Bases and Mounts: Plastic bases created through vacuum forming provide a stable, durable platform for guardrails, reducing the risk of falls in elevated areas. These components are weather-resistant, making them suitable for both indoor and outdoor applications.

  • Protective Barriers for Rooftops: STM Plastics can create customized safety barriers for rooftop applications, offering design flexibility to meet specific layout requirements while ensuring long-lasting OSHA compliance.

3. Anti-Slip and Safety Floor Mats

Slip-resistant flooring is essential in high-traffic areas to prevent workplace accidents. Vacuum-formed anti-slip mats and panels provide stable footing and help facilities comply with OSHA’s regulations for safe walking surfaces.

  • Custom Anti-Slip Mats for Walkways: Vacuum-formed mats with textured surfaces can be used on rooftops, factory floors, or loading docks to prevent slips and falls.

  • Drainage and Anti-Slip Panels: STM Plastics produces custom-designed floor panels with drainage capabilities for wet areas, ensuring secure footing even in challenging conditions. These panels are resistant to chemicals, making them suitable for heavy-duty industrial environments.

4. Containment Covers and Dust Control Enclosures

Dust and debris control is another important OSHA compliance area, particularly in environments where airborne particles could pose health risks. Vacuum-formed covers and enclosures help contain dust and maintain clean air quality in line with OSHA standards.

  • Containment Covers for Equipment: Vacuum-formed covers can be fitted to carts or dust control equipment, capturing particles and preventing them from spreading across the facility. STM Plastics offers custom dust control enclosures that are lightweight yet durable, providing flexibility in design and meeting strict OSHA compliance standards.

  • Protective Enclosures for Industrial Equipment: Enclosures made from vacuum-formed ABS or polycarbonate provide robust protection for electrical or mechanical equipment, shielding it from dust, water, and impact. These covers are easy to maintain and can be quickly removed for access, promoting both safety and operational efficiency in custom thermoforming.

5. Safety Labels and Panels for Hazard Identification

Effective hazard communication is vital for OSHA compliance. Vacuum-formed safety labels and panels provide clear, visible warnings that withstand exposure to chemicals, UV rays, and other environmental factors.

  • Durable Warning Panels: Raised lettering and molded symbols on vacuum-formed panels make critical information easy to identify. These panels are designed to withstand harsh environments, ensuring visibility and durability in compliance with OSHA’s labeling standards.

  • Color-Coded Safety Signs: Vacuum-formed panels can be customized with color coding, aiding quick hazard recognition. STM Plastics can produce these panels in large sizes, suitable for various industrial applications, from machinery signage to emergency exit markers.

Benefits of Vacuum Forming for OSHA-Compliant Safety Components

Vacuum forming offers unique advantages for OSHA-compliant safety products:

  1. Cost-Effective for Large Parts: Vacuum forming is ideal for producing large components at a lower cost compared to injection molding, making it an economical choice for items like guardrails and floor panels.

  2. Lightweight Design: Plastic components are much lighter than metal alternatives, which reduces installation effort and improves mobility, particularly for rooftop barriers and containment covers.

  3. High Impact Resistance: Materials like ABS and polycarbonate provide durability and resilience, allowing vacuum-formed components to withstand the rigors of industrial use.

  4. Weather- and Chemical-Resistant: Vacuum-formed plastic parts resist corrosion, UV rays, and harsh chemicals, making them ideal for both indoor and outdoor OSHA-compliant applications.

Conclusion: Achieving OSHA Compliance with Custom Vacuum-Formed Safety Products

Vacuum-formed safety components, from machine guards to anti-slip mats, provide reliable solutions for meeting OSHA’s safety standards. By incorporating lightweight, durable materials, these custom thermoforming components enhance workplace safety and operational efficiency across industrial settings.

Om Raj Tech and STM Plastics: Your Partners for OSHA-Compliant Thermoformed Solutions

With Om Raj Tech representing STM Plastics, we provide comprehensive custom thermoforming manufacturers solutions that ensure OSHA compliance in safety applications. STM Plastics’ expertise in custom vacuum forming, combined with Om Raj Tech’s industry insight, allows us to create tailored, durable safety products for a variety of settings. Contact us today to learn how our vacuum-formed solutions can enhance your workplace safety and compliance efforts.
