From Idea to Mold – The Essentials of Injection Molded Part Design (Part 1)

Injection molding stands as the backbone of modern plastics manufacturing, enabling the creation of precise, durable, and beautifully engineered parts at scale. But achieving a flawless result isn’t just about molten plastic and shiny molds—it starts at the design table. In this first part of our series, we’ll explore the essential design considerations that lay the groundwork for high-quality, cost-effective injection-molded components.

Why Part Geometry Matters
The geometry of your design isn’t merely a blueprint of appearance; it dictates how well your part fills, cools, ejects, and ultimately performs in its end use.

Figure 1: Design a Plastic Spoon



Wall Thickness

  • Uniformity is everything: Consistent wall thickness ensures balanced cooling, minimizes residual stresses, and prevents headaches like warping or sink marks.
  • Material matters: For example, aim for 1.2–3.5 mm with ABS, 0.8–3.0 mm with Polypropylene, and 1.0–4.0 mm with Polycarbonate.
  • Avoid abrupt jumps: Smooth transitions between sections help the molten plastic flow evenly, avoiding internal voids and long cooling times.

Figure 2: Wall Thickness for the Spoon



Draft Angles
Draft angles might seem like a small detail, but they’re critical. Adding a 1–2° taper per side to vertical walls allows parts to eject smoothly without scratching or distorting.

  • Longer mold life: Draft also reduces wear and tear on the mold, protecting your tooling investment.

Figure 3: Adding Draft to the Plastic Spoon



Radii and Fillets

  • Sharp corners are stress concentrators and flow disruptors. Instead, aim for internal radii of at least 0.5× the wall thickness, helping plastic flow uniformly and improving the part’s mechanical strength.
  • These rounded features not only make your part stronger—they make it look better and eject more cleanly too.



Figure 4: Adding internal Radii to Part



Designing with Mold Ejection in Mind
Even the best-looking design fails if it can’t release from the mold properly.



Figure 5: Draft face to help in Ejection of Part from Mold



Ejector Pins
Strategically placed ejector pins push your cooled part out without damaging it. Reinforce flat contact areas—called ejector pads—to spread the force evenly.

Mold Release Features
Incorporating draft and texture minimizes reliance on mold release agents, which keeps cycles cleaner and speeds up production.

Ribs and Bosses – Strength Without Bulk

Rather than bulking up walls to add strength, smart designers lean on ribs and bosses.

Figure 6: Ribs and Bosses Features to Part

Ribs

  • Designed correctly, ribs add rigidity without excess weight. Keep them 50–70% of the adjoining wall thickness and limit height to about 3× that thickness.
  • Slight draft and rounded bases prevent sink marks and make ejection smoother.

Bosses

  • Bosses are the go-to for accepting screws or inserts, but keep them at roughly 60% of adjacent wall thickness to avoid cosmetic flaws.
  • Fillets and supporting ribs reinforce these structures against stress.

Conclusion to Part 1
Designing for injection molding is an art that balances geometry, mechanics, and process constraints. By embracing best practices around wall thickness, draft, radii, ribs, and bosses, you’re setting your part up for consistent quality and cost-efficient manufacturing.

Stay tuned for Part 2, where we’ll dive into material selection, mold design strategies, and how to make sure your brilliant design stands up to real-world demands.



Top 7 Resins for Plastic Injection Molding

Selecting the right material is critical for successful plastic injection molding, especially in the automotive industry, where performance, durability, and safety are essential. This article provides a comprehensive overview of various plastic materials used in injection molding, focusing on their applications within the automotive sector. By understanding the specific benefits and requirements of these materials, you can make informed decisions for your automotive injection molding projects.

Key Plastic Materials for Injection Molding:

  • Polypropylene (PP): Ideal for interior components due to its chemical resistance and lightweight properties.

  • Acrylonitrile Butadiene Styrene (ABS): Versatile for exterior parts with excellent impact resistance and surface finish.

  • Polyamide (PA or Nylon): Known for its strength and toughness, perfect for engine components and gears.

  • Polycarbonate (PC): Provides optical clarity and durability, commonly used in lighting applications.

  • Polybutylene Terephthalate (PBT): Suited for electrical components with good dimensional stability.

  • Polyethylene (PE): Cost-effective and impact-resistant, used in fuel tanks and underbody components.

  • Polyurethane (PU): Offers flexibility and vibration damping, essential for seating and interior foams.

1. Polypropylene (PP)

Polypropylene (PP) is one of the most widely used plastics in the automotive industry. It offers excellent chemical resistance, impact strength, and dimensional stability, making it a top choice for interior components like dashboards, door panels, and instrument panels. Its lightweight nature not only helps improve fuel efficiency but also contributes to reducing the overall vehicle weight, which is crucial in modern automotive design.

2. Acrylonitrile Butadiene Styrene (ABS)

Acrylonitrile Butadiene Styrene (ABS) is a versatile thermoplastic known for its good impact resistance, dimensional stability, and high strength. It is commonly used for exterior parts such as body panels, grilles, and trim components. ABS is particularly valued for its excellent surface finish options, which make it suitable for applications where aesthetics are important. Its durability and ability to withstand environmental stressors make it ideal for various exterior automotive applications.

3. Polyamide (PA or Nylon)

Polyamide (PA), commonly known as nylon, is highly regarded for its exceptional strength, toughness, and resistance to wear and abrasion. It is extensively used in automotive applications such as engine components, gears, bushings, and electrical connectors. Nylon’s high temperature resistance allows it to withstand harsh operating conditions, making it a reliable material for parts that must endure mechanical stress and extreme environments.

4. Polycarbonate (PC)

Polycarbonate (PC) is a transparent thermoplastic that offers outstanding impact resistance and heat resistance. This makes it an ideal choice for automotive lighting applications, including headlamp lenses and taillight covers. PC’s optical clarity ensures efficient light transmission while maintaining durability, which is essential for safety and performance in lighting components.

5. Polybutylene Terephthalate (PBT)

Polybutylene Terephthalate (PBT) is a semi-crystalline thermoplastic that provides excellent electrical properties, chemical resistance, and dimensional stability. It is commonly used in automotive electrical components, connectors, and sensors. PBT can withstand elevated temperatures and exhibits low moisture absorption, making it well-suited for applications where consistent performance in varying environmental conditions is necessary.

6. Polyethylene (PE)

Polyethylene (PE) is a lightweight thermoplastic known for its low cost and ease of processing. It is commonly used in automotive applications such as fuel tanks, pipes, and underbody components. PE’s good resistance to chemicals and high impact strength make it a reliable and cost-effective material for parts that need to be durable and withstand harsh conditions.

7. Polyurethane (PU)

Polyurethane (PU) is a versatile elastomeric material that offers excellent flexibility, impact resistance, and vibration damping properties. It is frequently used for automotive seating, interior foams, and suspension components. PU enhances comfort, durability, and safety, making it an essential material in areas where cushioning and resilience are critical.

Conclusion

Choosing the right plastic material is vital for the success of automotive injection molding projects. Polypropylene (PP), Acrylonitrile Butadiene Styrene (ABS), Nylon (PA), Polycarbonate (PC), Polybutylene Terephthalate (PBT), Polyethylene (PE), and Polyurethane (PU) are just a few examples of materials widely used in the automotive industry, each offering unique properties and benefits tailored to specific applications. When selecting materials, consider factors such as performance characteristics, cost-effectiveness, regulatory compliance, and industry standards.

Collaboration with material suppliers, along with a deep understanding of automotive design and manufacturing requirements, will ensure the successful implementation of plastic injection molding in your automotive projects. By making informed material choices, you can enhance the functionality, safety, and aesthetic appeal of your automotive components.

The Basics of Plastic Injection Molding: A Comprehensive Overview

Plastic injection molding is a highly versatile and widely used manufacturing process that enables the efficient and cost-effective production of high-quality plastic parts. For designers, engineers, and manufacturers, understanding this process is essential to leverage its full potential across various industries. This comprehensive overview covers the process steps, key equipment, and diverse industry applications of plastic injection molding.

What is Plastic Injection Molding?

Plastic injection molding involves melting plastic material and injecting it into a precisely crafted mold to create parts with intricate designs and exact specifications. This method is ideal for mass production, offering consistent quality and high production rates while minimizing material waste.

The Plastic Injection Molding Process: Step-by-Step

The plastic injection molding process consists of several critical steps that transform raw plastic into finished products:

1. Mold Design

The process begins with the design of a precise mold, typically made from durable materials like steel or aluminum. The mold is engineered to match the exact geometry and specifications of the desired part, ensuring accuracy, consistency, and efficient production cycles.

2. Material Selection

Selecting the appropriate plastic material is crucial and depends on the part’s functional requirements such as strength, flexibility, durability, and heat resistance. Common materials include:

  • Polypropylene (PP)

  • Acrylonitrile Butadiene Styrene (ABS)

  • Nylon (PA)

  • Polycarbonate (PC)

  • Polyethylene (PE)

3. Injection

The chosen plastic material is melted and injected into the mold cavity using an injection molding machine. High pressure ensures that the molten plastic fills the mold completely, capturing all the intricate details and features of the design.

4. Cooling

Once injected, the plastic cools and solidifies within the mold, taking on the desired shape. Proper cooling is essential to maintain the part’s structural integrity and dimensional accuracy, preventing defects such as warping or shrinkage.

5. Ejection

After the part has fully cooled, the mold opens, and the finished part is ejected using ejector pins or plates. The part may then undergo secondary processes such as trimming, painting, or assembly, depending on the application requirements.

Key Equipment in Plastic Injection Molding

Efficient and precise plastic injection molding relies on specialized equipment, including:

1. Injection Molding Machine

The injection molding machine is the core of the process and comprises several components:

  • Hopper: Holds and feeds the raw plastic pellets into the machine.

  • Injection Unit: Melts and injects the plastic into the mold.

  • Clamping Unit: Holds the mold securely during injection and cooling.

  • Control Systems: Manage and monitor process parameters like temperature, pressure, and injection speed for optimal results.

2. Mold

The mold is a custom-designed tool that shapes the molten plastic into the desired form. It consists of two halves:

  • Cavity Side (Female): Forms the exterior surface of the part.

  • Core Side (Male): Forms the interior surfaces and features.

Molds are engineered with precision to ensure durability and withstand high-pressure injections over numerous cycles.

3. Auxiliary Equipment

Additional equipment enhances the efficiency and quality of the injection molding process:

  • Material Dryers: Remove moisture from plastic pellets before injection.

  • Temperature Controllers: Maintain consistent temperatures for optimal material flow and solidification.

  • Robots and Conveyors: Automate part removal and handling, increasing production speed and consistency.

  • Quality Inspection Systems: Ensure each part meets specified standards and tolerances.

Applications of Plastic Injection Molding Across Industries

Plastic injection molding is integral to numerous industries due to its versatility, precision, and efficiency. Below are detailed applications across various sectors:

1. Automotive Industry

In the automotive sector, injection molding produces a wide array of components, including:

  • Dashboards and Interior Trim: Offering aesthetic appeal and functional design.

  • Bumpers and Exterior Panels: Providing durability and impact resistance.

  • Engine Components: Ensuring high performance under extreme conditions.

  • Lighting Systems: Manufacturing clear and durable headlight and taillight covers.

Related Keywords: automotive plastic parts, injection molded car components, durable automotive plastics.

2. Consumer Goods Industry

For consumer products, injection molding is used to create:

  • Electronic Housings: Protecting devices like smartphones, computers, and home appliances.

  • Kitchenware: Producing durable and heat-resistant utensils, containers, and appliances.

  • Toys and Recreational Items: Crafting safe and intricate designs for various age groups.

  • Packaging Materials: Developing versatile and customizable packaging solutions.

Related Keywords: consumer plastic products, injection molded goods, durable consumer plastics.

3. Medical Industry

In the medical field, injection molding ensures the production of high-quality, sterile components such as:

  • Syringes and IV Components: Ensuring safety and precision in medical treatments.

  • Medical Device Enclosures: Providing protection and durability for sensitive equipment.

  • Surgical Instruments: Offering reliability and precision for various medical procedures.

  • Laboratory Equipment: Manufacturing test tubes, petri dishes, and other essential lab tools.

Related Keywords: medical grade plastics, injection molded medical devices, sterile plastic components.

4. Electronics Industry

The electronics sector utilizes injection molding for creating:

  • Connectors and Switches: Ensuring secure and efficient electrical connections.

  • Circuit Board Housings: Protecting delicate components from environmental factors.

  • Remote Controls and Keypads: Offering durability and ergonomic design.

  • Cable Assemblies: Providing insulation and organization for complex wiring systems.

Related Keywords: electronic plastic parts, injection molded electronics, durable electronic enclosures.

5. Arms and Ammunition Industry

In the arms and ammunition industry, injection molding is employed to produce:

  • Firearm Components: Manufacturing durable and lightweight parts such as grips, stocks, and frames.

  • Ammunition Casings: Creating precise and reliable casings for various ammunition types.

  • Accessories: Developing components like holsters, magazines, and protective cases.

Related Keywords: firearm plastic parts, injection molded ammunition components, durable gun accessories.

6. Medical Laboratory Equipment Industry

The medical laboratory equipment sector benefits from injection molding through:

  • Diagnostic Devices: Producing components for equipment like blood analyzers and glucose monitors.

  • Sample Containers: Ensuring contamination-free storage and transport of biological samples.

  • Pipettes and Tips: Providing precision tools for accurate measurement and transfer of liquids.

  • Equipment Housings: Creating protective and ergonomic enclosures for various lab instruments.

Related Keywords: lab equipment plastics, injection molded laboratory tools, sterile lab components.

7. Agricultural Equipment Industry

In the agriculture industry, injection molding contributes by producing:

  • Machinery Components: Manufacturing durable parts for tractors, harvesters, and irrigation systems.

  • Storage Containers: Creating weather-resistant bins and tanks for storing feed, water, and chemicals.

  • Tools and Equipment: Developing lightweight and robust tools for farming operations.

  • Protective Gear: Producing equipment like guards and shields to ensure safety during agricultural processes.

Related Keywords: agricultural plastic parts, injection molded farming equipment, durable agricultural tools.

8. Poultry Industry

The poultry sector utilizes injection molding to produce:

  • Feeding and Watering Systems: Creating efficient and hygienic feeders and drinkers.

  • Egg Trays and Incubators: Manufacturing durable and sanitary equipment for egg handling and hatching.

  • Ventilation Components: Developing parts that ensure proper airflow and temperature control in poultry houses.

  • Protective Barriers: Producing enclosures and fencing solutions for safe and controlled environments.

Related Keywords: poultry plastic equipment, injection molded poultry supplies, durable poultry farming tools.

9. Construction Industry

In the construction field, injection molding is key for creating:

  • Plumbing Components: Producing pipes, fittings, and valves that are durable and resistant to corrosion.

  • Electrical Fixtures: Manufacturing switch plates, conduit fittings, and junction boxes.

  • Insulation Materials: Developing components that enhance energy efficiency and noise reduction.

  • Hardware and Fasteners: Creating strong and reliable clips, anchors, and other fastening systems.

Related Keywords: construction plastic parts, injection molded building materials, durable construction components.

Advantages of Plastic Injection Molding

The widespread adoption of plastic injection molding is attributed to several significant advantages:

1. Design Flexibility

Injection molding supports the creation of complex and intricate designs with high precision, allowing for innovative solutions and customization to meet specific application needs.

2. Cost Efficiency

The ability to mass-produce parts quickly and consistently reduces production costs. Minimal material waste and low labor requirements further enhance cost-effectiveness.

3. Material Versatility

A wide range of thermoplastic and thermosetting materials can be used, each offering unique properties such as heat resistance, strength, and flexibility tailored to various applications.

4. High Production Speed and Efficiency

Injection molding processes are highly automated, enabling rapid production cycles and consistent quality, which is essential for meeting tight deadlines and large-volume demands.

5. Enhanced Strength and Durability

The process allows for reinforcement with fillers and the use of high-strength materials, resulting in parts that meet rigorous performance and durability standards across industries.

FAQs About Plastic Injection Molding

1. What factors should be considered when selecting materials for injection molding?
Considerations include the material’s strength, flexibility, heat resistance, chemical resistance, and suitability for the intended application and industry standards.

2. How does injection molding benefit high-volume production?
Injection molding offers rapid production cycles, consistent part quality, and low per-unit costs, making it ideal for manufacturing large quantities efficiently.

3. Can injection molding produce eco-friendly products?
Yes, many recyclable and biodegradable plastics can be used in injection molding, and the process itself generates minimal waste, supporting sustainable manufacturing practices.

4. What is the typical lead time for injection molded parts?
Lead times vary based on part complexity and production volume but are generally shorter due to automation and efficient production processes.

5. How can injection molding accommodate complex designs?
Advanced mold-making techniques and precise control over process parameters allow for the creation of highly detailed and complex part geometries with tight tolerances.

6 Strategies to Reduce Cost of Plastic Parts in Injection Molding

As a sourcing or purchasing manager, reducing costs while maintaining quality is one of your top priorities. When it comes to plastic injection molding, there are several strategies you can use to cut down expenses without sacrificing the performance of your plastic parts. Here are six practical ways to optimize costs in your plastic injection molding projects:

Key Cost Reduction Strategies:

  • Choose the Right Material: Opt for materials that offer the best balance between cost and performance.

  • Simplify the Design: Work with your design team to remove complex features that drive up production costs.

  • Improve Process Efficiency: Make small adjustments to the production process to increase output without additional resources.

  • Reduce Waste: Implement better material management to minimize waste and maximize material usage.

  • Work Closely with Suppliers: Negotiate better pricing and collaborate on cost-effective solutions.

  • Focus on Continuous Improvement: Regularly review and refine processes to keep reducing costs over time.

1. Choose the Right Material

Selecting the right material can make a big difference in your costs. For example, if you’re currently using a high-performance plastic that costs $10 per kilogram, consider whether a similar material that costs $8 per kilogram could do the job just as well. By switching to the less expensive material, you could reduce your material costs by 20%, all without compromising the quality of your parts.

This simple step can help you achieve significant savings, especially in large production runs.

Plastic Resin Price Index (paid subscription needed) : Plastic News Resin Prices North America

You may find the newsletter from Cody Bates useful for costing resins for your products.

2. Simplify the Design

The design of your plastic parts plays a huge role in the overall cost. For instance, if your part has a complex feature like an undercut that requires special tooling, it’s going to be more expensive to produce. By working with your design team to simplify the part—say, by removing the undercut—you could save thousands of dollars in tooling costs and make the production process faster and more efficient.

Simpler designs not only lower costs but also speed up production, allowing you to meet tight deadlines and reduce labor expenses.

3. Improve Process Efficiency

Improving how the injection molding process is carried out can also lead to cost savings. For example, if you can reduce the cooling time by just a few seconds per cycle, you can produce more parts in the same amount of time. Let’s say you currently produce 1,000 parts per day with a cycle time of 60 seconds. Cutting the cycle time by 5 seconds could boost your output by an additional 100 parts per day.

This means you’re getting more parts without spending more money on extra resources, effectively reducing your per-unit cost.

4. Reduce Waste

Waste during production is money lost. If you’re seeing a waste rate of 10% in your material usage, there’s room for improvement. By implementing better material management practices, optimizing the runner and gating systems, and reusing scrap material, you could cut your waste rate in half. For example, reducing waste from 10% to 5% in a production run that uses 1,000 kilograms of material per month could save you 50 kilograms of material.

Less waste means direct savings, which adds up over time, especially in high-volume production.

5. Work Closely with Suppliers

Building strong relationships with your suppliers can lead to cost reductions as well. For instance, negotiating better pricing or bulk purchase discounts on materials can help you save significantly. If your annual material cost is $500,000, even a small 5% discount could save you $25,000. Additionally, collaborating with tooling suppliers to find cost-effective solutions can lower your upfront costs and reduce maintenance expenses down the line.

Good supplier relationships are key to securing the best deals and finding cost-effective solutions that meet your needs.

6. Focus on Continuous Improvement

Continuous improvement isn’t just a buzzword—it’s a way to keep costs down over time. By regularly reviewing and refining your processes, you can identify areas where efficiency can be improved. For example, setting up a team to focus on process improvements could help you reduce overall manufacturing costs by 10%.

Ongoing efforts to streamline production will keep you ahead of the competition and help you meet your cost reduction targets year after year.

Conclusion

Reducing costs in plastic injection molding doesn’t have to mean compromising on quality. By focusing on smart material choices, simplified designs, process efficiency, waste reduction, supplier collaboration, and continuous improvement, you can achieve significant savings. As a sourcing or purchasing manager, these strategies will help you meet your cost targets, making your projects more profitable and your company more competitive.

Designing Thermoformed Plastic Safety Covers for Machines: Compliance with OSHA Standards for Moving Parts

In industrial and manufacturing settings, machines with moving components such as motors, bearings, shafts, belts, and pulleys pose significant safety risks if left exposed. Safety covers designed with thermoformed plastic can effectively protect workers from these hazards while adhering to OSHA standards, particularly 29 CFR Part 1910, which specifies requirements for machine guarding.

Key Considerations for Machine Safety Covers Using Thermoformed Plastic

For an effective design, each type of moving part requires special attention to both material selection and structural design. Here’s how OSHA standards guide the process for designing safe, durable thermoformed plastic covers:

1. Material Selection for Strength and Impact Resistance

OSHA’s 1910.212 on machine guarding emphasizes that guards must prevent worker access to moving parts. Thermoformed plastic is an excellent material choice because it’s lightweight, customizable, and impact-resistant, which is crucial for protecting workers from sudden breaks or debris.

  • Recommended Plastics: Polycarbonate is ideal for high-impact situations near motors or belts, as it offers a superior balance of durability and transparency. Acrylic and ABS may also be suitable for less rigorous applications.

  • Impact Testing: Ensuring the plastic meets ASTM D256 (Izod Impact Strength) standards is essential, as this helps confirm that the cover can withstand impacts without breaking or shattering. This testing assures compliance with OSHA’s requirements for preventing access to hazardous parts.

2. Covering Rotating Shafts and Exposed Bearings

Rotating shafts and bearings can quickly snag clothing or entrap limbs. OSHA guidelines require that guards prevent accidental contact, especially with rotating parts. Thermoformed plastic covers offer versatile design solutions for these hazards.

  • Full Enclosures for Shafts: Where feasible, full enclosures should surround rotating shafts, designed with sufficient clearance to prevent entanglement while allowing for safe observation.

  • Ventilation for Bearings: Bearings generate frictional heat, so the plastic cover should be vented where possible to prevent overheating. Strategically placed slits or perforations provide airflow while maintaining a strong barrier.

3. Safeguarding Belts and Pulleys with Shatterproof Covers

Belts and pulleys pose a unique challenge due to their continuous motion and potential for material wear. OSHA’s 1910.219 standard on mechanical power-transmission apparatus requires guards on exposed belts and pulleys.

  • Transparent Guarding: Clear, shatter-resistant materials allow operators to monitor belts without removing the cover. Polycarbonate is a preferred choice due to its high impact resistance, essential for preventing injuries from snapped belts or displaced pulleys.

  • Reinforced Corners and Edges: To enhance durability in high-stress areas, consider thicker edges or reinforced corners. This design approach helps prevent premature wear, especially around belt-driven machinery that experiences frequent vibrations.

4. Guarding Motors and Electrical Components

Motors are another critical component requiring secure guarding. Safety covers must not only prevent accidental contact but also accommodate airflow to avoid overheating. 1910.303 on electrical systems emphasizes that guards should allow for necessary ventilation around motors and electrical components.

  • Perforated Thermoformed Plastic Covers: Perforations or ventilation slots allow airflow while maintaining full coverage. This is especially important for electric motors, which rely on air circulation for cooling.

  • Modular Design for Motor Access: In maintenance-heavy settings, modular or quick-release covers allow easier access to motors for inspection, repair, or replacement without compromising safety.

5. Flexible Design for Accessibility and Ergonomics

The thermoformed plastic design should balance safety with ease of access, especially for parts that require frequent maintenance. OSHA’s 1910.147 standard on lockout/tagout (LOTO) highlights the need for easy access to machinery components while ensuring accidental startups are prevented.

  • Quick-Release Latches and Hinges: Using latches or hinged designs allows workers to access machine components easily while ensuring secure coverage during operation. For example, a quick-release panel on a cover for a motor allows fast inspection without detaching the entire guard.

  • Snap-On Covers for Bearings and Shafts: For moving parts like bearings, snap-on covers can be designed to fit snugly yet allow quick removal for lubrication or replacement.

6. Environmental Resistance and Durability for Machine Enclosures

Industrial environments can expose plastic covers to harsh elements, including oils, chemicals, and UV light. According to 1910.94 and 1910.1000, machine guards must withstand exposure to potential contaminants to maintain integrity over time.

  • Chemical-Resistant Coatings: For machinery exposed to lubricants, oils, or cleaning chemicals, the plastic should be treated with a protective coating. Polycarbonate and ABS with anti-corrosion treatments can provide the necessary durability.

  • UV-Stabilized Materials for Outdoor Machinery: Machines operating outdoors or near windows may require UV-resistant plastic, ensuring guards do not become brittle or discolored due to prolonged sun exposure.

7. Safety Labeling and Signage for Hazard Awareness

Clear labeling of hazards is crucial for effective machine safety. OSHA’s 1910.145 standard on safety signs and tags emphasizes the importance of visible warning labels on guards.

  • Durable Labels on Flat Surfaces: Labels indicating hazard zones, maintenance instructions, or lockout points should be placed on flat, prominent areas of the cover. Laminated or engraved labels resist wear from cleaning and chemicals.

  • Color Coding for Visual Cues: Color-coded sections on the guard can help operators quickly identify different components. For instance, red for danger zones and green for maintenance panels can improve operational safety.

Additional Design Tips for Thermoformed Safety Covers on Machinery

While OSHA compliance forms the foundation of safety cover design, practical design considerations can improve the functionality and ease of use of thermoformed plastic guards:

  • Prototyping for Fit and Functionality: Prototyping allows engineers to assess the fit of the cover on actual machinery and receive feedback from operators. Adjustments can be made to improve the ergonomic design, visibility, and accessibility.

  • Modular Assembly for Customization: Modular cover designs allow for mix-and-match sections that can be tailored to fit different types of machinery, such as various motor or pulley configurations, without redesigning the entire guard.

  • Anti-Fogging and Scratch-Resistant Coatings: For guards covering moving parts that need close monitoring, anti-fog and scratch-resistant coatings maintain visibility and durability over time.

Conclusion: Effective Machine Guarding with Thermoformed Plastic

Thermoformed plastic safety covers, when designed according to OSHA guidelines, offer a powerful combination of protection, durability, and cost-effectiveness for machine guarding. By prioritizing material strength, environmental resistance, and functional design, engineers can create thermoformed guards that meet OSHA’s stringent requirements while enhancing workplace safety.

For industries reliant on machinery with moving parts, including motors, bearings, shafts, and belts, the right safety cover can reduce the risk of accidents and increase operational efficiency. Integrating thermoformed plastic safety standards from the beginning of the design process not only ensures compliance but also supports a proactive approach to workplace safety and productivity.

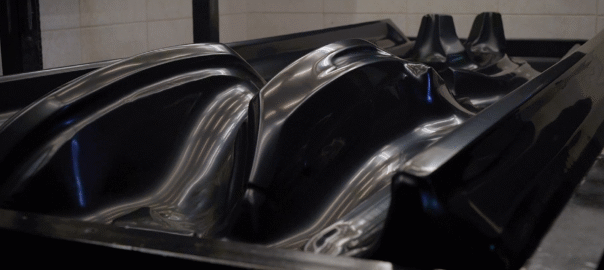

OSHA-Compliant Safety Products Using Vacuum Forming: Durable Solutions with Custom Thermoforming

In many industrial and commercial settings, safety products are essential for protecting workers and ensuring OSHA compliance. Vacuum forming, a type of custom thermoforming , offers a practical solution for creating durable, custom-designed safety components that meet OSHA’s standards for machine guarding, fall protection, and safe handling. This process allows for the production of large, lightweight parts with detailed designs, ideal for safety applications.

This article explores OSHA-compliant safety products that can be created through vacuum forming, covering the benefits, applications, and design considerations. With the expertise of STM Plastics, a company with robust capabilities in both heavy and thin-gauge thermoforming, businesses can achieve tailored, compliant solutions that improve workplace safety.

Why OSHA Compliance Matters for Thermoformed Safety Products

OSHA’s guidelines are designed to prevent workplace injuries and ensure that safety products are durable, visible, and accessible. Several key OSHA standards apply to thermoplastic safety components:

  • 1910.29: Requirements for fall protection systems, including guardrails and barriers.

  • 1910.212: Machine guarding requirements to protect workers from moving parts.

  • 1910.145: Specifications for safety signs and labels, including durability and clarity for accident prevention.

By adhering to these standards, vacuum-formed products help facilities protect employees from risks associated with machinery, fall hazards, and other workplace dangers.

Applications of OSHA-Compliant Safety Products Using Vacuum Forming

1. Machine Guards and Protective Covers

OSHA’s 1910.212 standard requires that machinery be properly guarded to protect employees from moving parts. Vacuum-formed machine guards and covers are ideal for creating large, lightweight, and durable barriers that meet these requirements.

  • Safety Guards for Belts and Chains: Thermoformed plastic covers protect workers from belts, chains, and gears. These covers are commonly made from high-impact materials like ABS or polycarbonate for added durability.

  • Custom Enclosures for Hazardous Equipment: STM Plastics specializes in custom-designed enclosures that prevent accidental contact with dangerous machinery parts. Their custom thermoforming expertise allows for precise moldings that fit snugly around equipment, ensuring compliance with OSHA machine guarding standards.

2. Fall Protection and Barrier Components

In facilities with elevated work areas or rooftops, OSHA’s 1910.29 standard mandates the use of guardrails and fall protection barriers. Vacuum-formed components, such as guardrail bases and safety barriers, offer a lightweight, corrosion-resistant alternative to metal.

  • Guardrail Bases and Mounts: Plastic bases created through vacuum forming provide a stable, durable platform for guardrails, reducing the risk of falls in elevated areas. These components are weather-resistant, making them suitable for both indoor and outdoor applications.

  • Protective Barriers for Rooftops: STM Plastics can create customized safety barriers for rooftop applications, offering design flexibility to meet specific layout requirements while ensuring long-lasting OSHA compliance.

3. Anti-Slip and Safety Floor Mats

Slip-resistant flooring is essential in high-traffic areas to prevent workplace accidents. Vacuum-formed anti-slip mats and panels provide stable footing and help facilities comply with OSHA’s regulations for safe walking surfaces.

  • Custom Anti-Slip Mats for Walkways: Vacuum-formed mats with textured surfaces can be used on rooftops, factory floors, or loading docks to prevent slips and falls.

  • Drainage and Anti-Slip Panels: STM Plastics produces custom-designed floor panels with drainage capabilities for wet areas, ensuring secure footing even in challenging conditions. These panels are resistant to chemicals, making them suitable for heavy-duty industrial environments.

4. Containment Covers and Dust Control Enclosures

Dust and debris control is another important OSHA compliance area, particularly in environments where airborne particles could pose health risks. Vacuum-formed covers and enclosures help contain dust and maintain clean air quality in line with OSHA standards.

  • Containment Covers for Equipment: Vacuum-formed covers can be fitted to carts or dust control equipment, capturing particles and preventing them from spreading across the facility. STM Plastics offers custom dust control enclosures that are lightweight yet durable, providing flexibility in design and meeting strict OSHA compliance standards.

  • Protective Enclosures for Industrial Equipment: Enclosures made from vacuum-formed ABS or polycarbonate provide robust protection for electrical or mechanical equipment, shielding it from dust, water, and impact. These covers are easy to maintain and can be quickly removed for access, promoting both safety and operational efficiency in custom thermoforming.

5. Safety Labels and Panels for Hazard Identification

Effective hazard communication is vital for OSHA compliance. Vacuum-formed safety labels and panels provide clear, visible warnings that withstand exposure to chemicals, UV rays, and other environmental factors.

  • Durable Warning Panels: Raised lettering and molded symbols on vacuum-formed panels make critical information easy to identify. These panels are designed to withstand harsh environments, ensuring visibility and durability in compliance with OSHA’s labeling standards.

  • Color-Coded Safety Signs: Vacuum-formed panels can be customized with color coding, aiding quick hazard recognition. STM Plastics can produce these panels in large sizes, suitable for various industrial applications, from machinery signage to emergency exit markers.

Benefits of Vacuum Forming for OSHA-Compliant Safety Components

Vacuum forming offers unique advantages for OSHA-compliant safety products:

  1. Cost-Effective for Large Parts: Vacuum forming is ideal for producing large components at a lower cost compared to injection molding, making it an economical choice for items like guardrails and floor panels.

  2. Lightweight Design: Plastic components are much lighter than metal alternatives, which reduces installation effort and improves mobility, particularly for rooftop barriers and containment covers.

  3. High Impact Resistance: Materials like ABS and polycarbonate provide durability and resilience, allowing vacuum-formed components to withstand the rigors of industrial use.

  4. Weather- and Chemical-Resistant: Vacuum-formed plastic parts resist corrosion, UV rays, and harsh chemicals, making them ideal for both indoor and outdoor OSHA-compliant applications.

Conclusion: Achieving OSHA Compliance with Custom Vacuum-Formed Safety Products

Vacuum-formed safety components, from machine guards to anti-slip mats, provide reliable solutions for meeting OSHA’s safety standards. By incorporating lightweight, durable materials, these custom thermoforming components enhance workplace safety and operational efficiency across industrial settings.

Om Raj Tech and STM Plastics: Your Partners for OSHA-Compliant Thermoformed Solutions

With Om Raj Tech representing STM Plastics, we provide comprehensive custom thermoforming manufacturers solutions that ensure OSHA compliance in safety applications. STM Plastics’ expertise in custom vacuum forming, combined with Om Raj Tech’s industry insight, allows us to create tailored, durable safety products for a variety of settings. Contact us today to learn how our vacuum-formed solutions can enhance your workplace safety and compliance efforts.
